Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) (mm) |
|---|---|---|---|---|---|
| WLP-1 | WW-NW-CW | 220-240V AC | 28 | 3332 | 330 |
| WLP-2 | WW-NW-CW | 220-240V AC | 56 | 6664 | 63 |
| WLP-3 | WW-NW-CW | 220-240V AC | 84 | 9996 | 920 |
| WLP-4 | WW-NW-CW | 220-240V AC | 112 | 13328 | 1220 |
| WLP-1-DMX | WW-NW-CW | 48V DC | 28 | - | 330 |
| WLP-2-DMX | WW-NW-CW | 48V DC | 56 | - | 630 |
| WLP-3-DMX | RGBW | 48V DC | 84 | - | 920 |
| WLP-4-DMX | RGBW | 48V DC | 112 | - | 1220 |
*Power and lumen values provided are based off of a cold white(CW) LED
Key Features
• Professional LED light source WallWasher
lighting fixture
• WallWasher family consisting of 4 different sizes
• -20 to +40 °C Operating temperature
• Anodized aluminum extrusion body
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| RGBW |
  |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting Accessories
20: Standard Stand
OPTIONAL ACCESSORIES

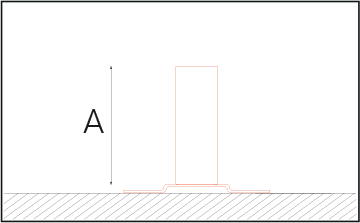

34: Extension piece A=5cm
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
Upper Cover Options

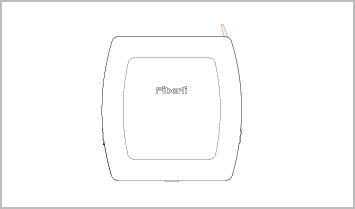

WITH GLARE SHIELD
WITHOUT GLARE SHIELD
Connection Options
CABLE
Cable Direction Options
01: SINGLE ENTRY
03: DUAL ENTRY AND EXIT*
*The max. junction qty may vary for the products with both entry and exit
Product Diagrams
Technical Draw
