LED Projector / C-WL

PRODUCT & POWER OPTIONS

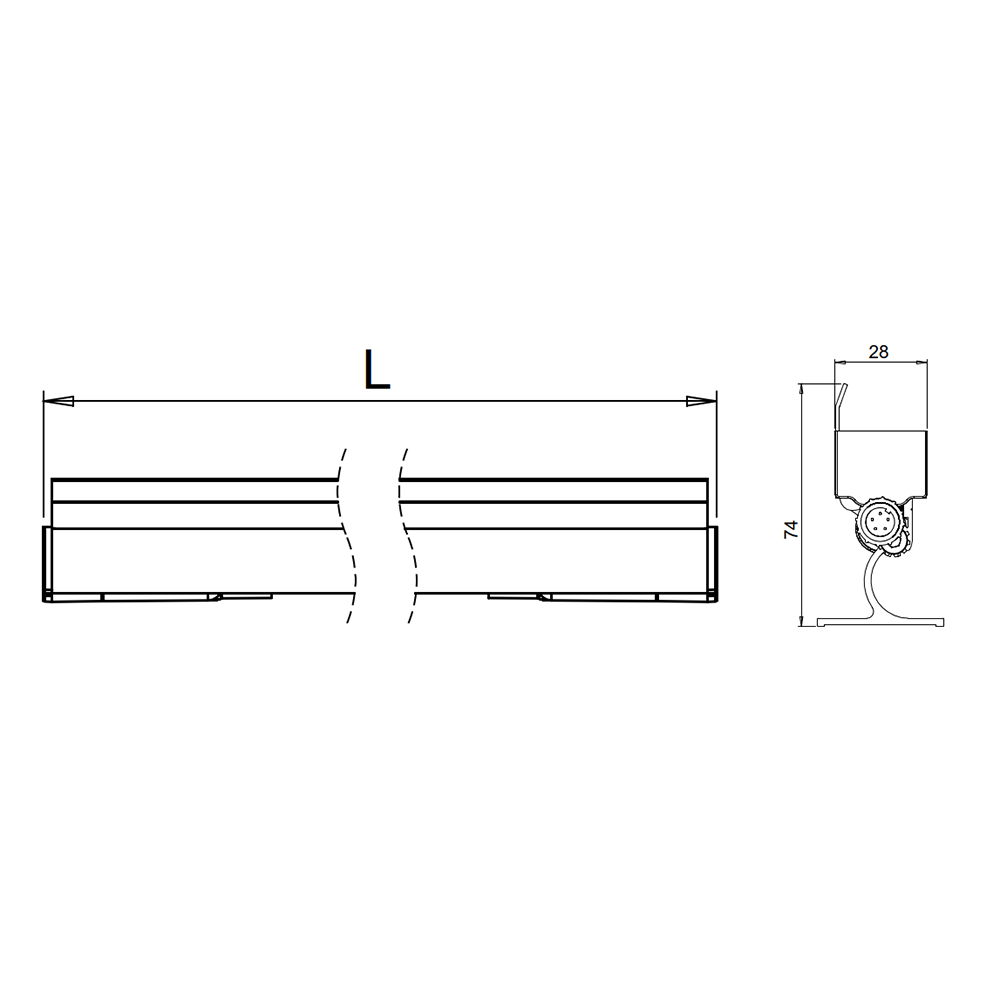

Product Name	Light Color	Input Voltage (V)	Power (W)	Luminous Flux (lm)	Length (L)	Product Weight (kg)
C-WL216	RGBW	48V DC	16	-	600	0,5

*Power and Lumen values provided are based off of a “cold white (CW) LED”.

ELECTROMECHANICAL SPECIFICATIONS

• Anodized aluminum extruded profile
• Polycarbonate luminaire glass
• PVC side covers with invisible gland outlet and UV protection
• Stainless steel fixture stand
• High efficiency group lens
• IP68 air vent

LIGHT COLOR OPTIONS

WW:Warm White	2700K	R:Red	625nm
WW:Warm White	3000K	G:Green	525nm
NW:Natural White	4000K	B:Blue	465nm
CW:Cold White	6500K	A:Amber	590nm

O
LENS OPTIONS
- XN: Extra Narrow Angle
- N: Narrow Angle
- N: Narrow Elliptical
  Angle
- M: Medium Angle
- W: Wide Angle
J
CONNECTIONS OPTIONS
- 02: IP Socket
K
CABLE DIRECTION OPTIONS

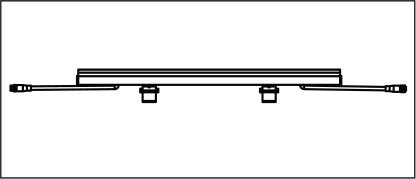

- 02: Dual entry and exit

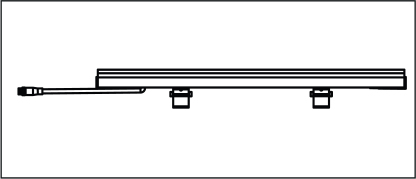

- 04:Left bottom exit

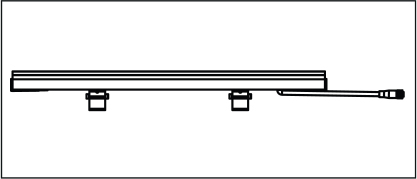

- 06Right bottom exit
U
UPPER PIECE OPTIONS

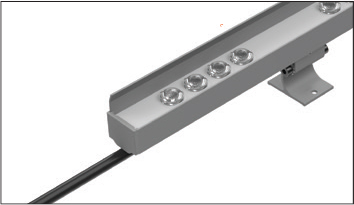

- Glare Shield
