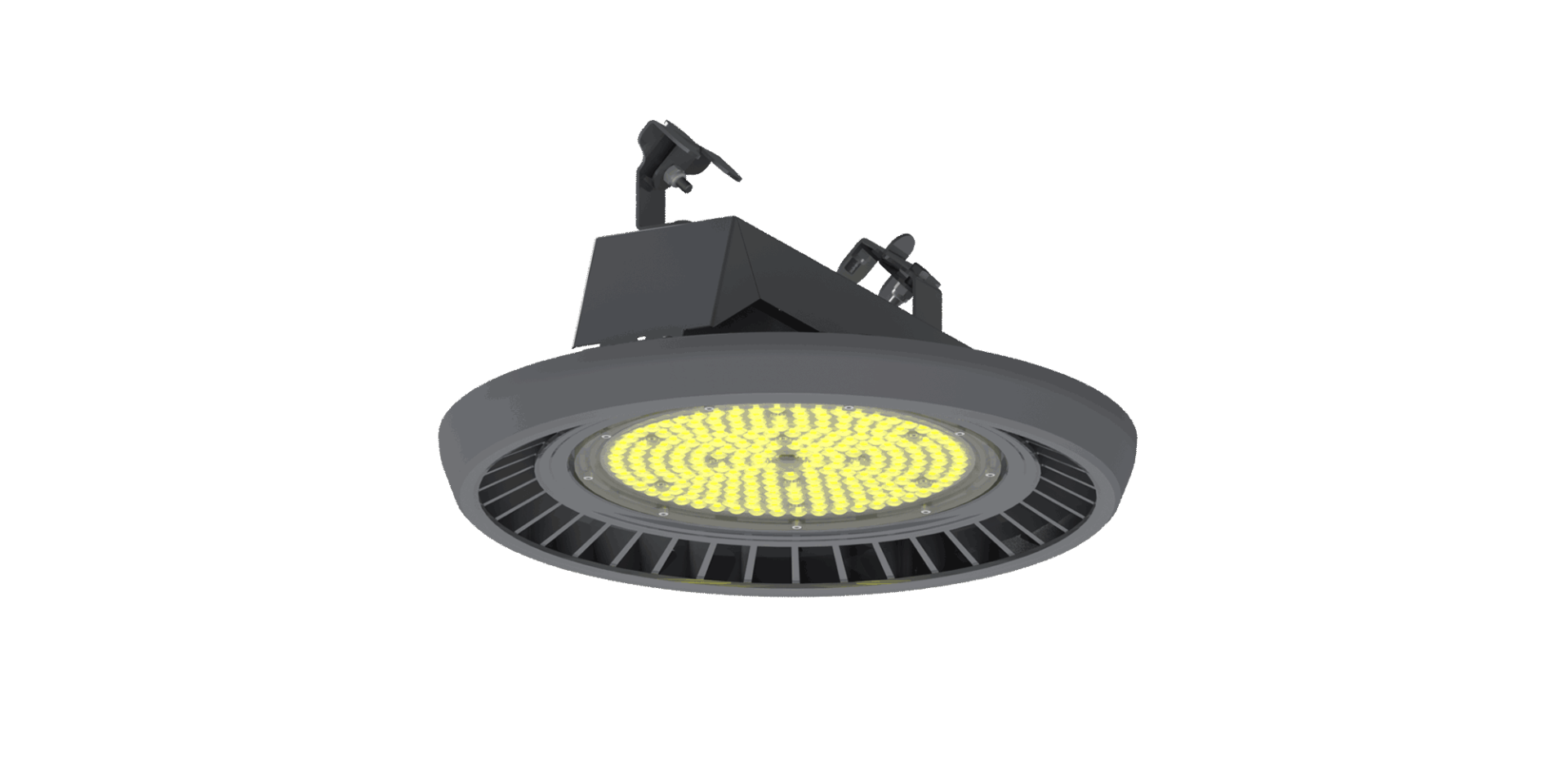

AY380 KATENER
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| AY380-K | WW-NW-CW | 220-240V AC | 40 | 5.035 | 3,8 |
| AY380-K | WW-NW-CW | 220-240V AC | 60 | 7.570 | 3,8 |
| AY380-K | WW-NW-CW | 220-240V AC | 80 | 10.160 | 3,8 |
*Power and Lumen values provided are based off of a "cold white (CW) LED"
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic painted aluminum injection body
• Stainless rope mounting bracket and connection pieces
• Rope range between Ø3mm-Ø12mm
• Suitable for outdoor use
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
Housing Color Options
RAL9005
RAL9007
RAL9016

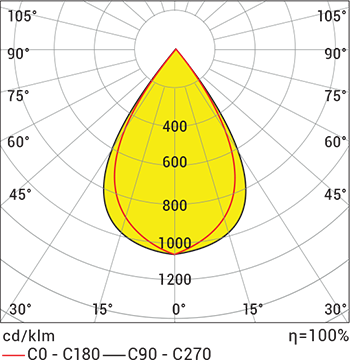

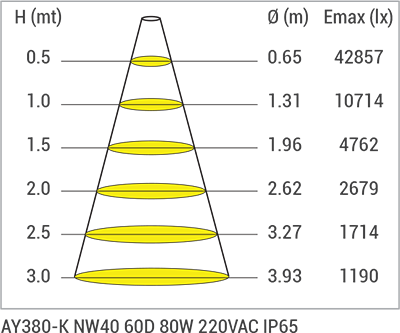

Product Diagrams

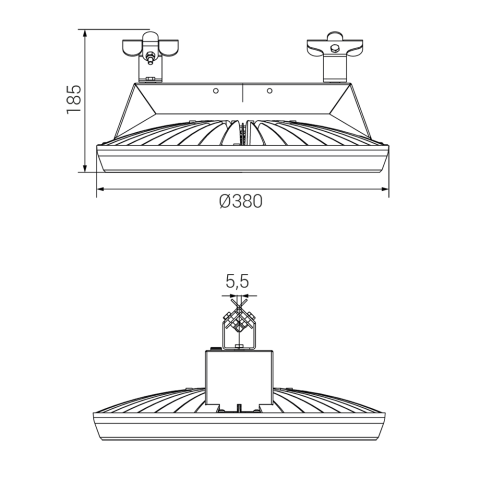

Technical Draw
Documents
