AYDAN9
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Code | Color Light | Voltage (V) | Power | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| AYDAN9 | WW-NW-CW | 220-240V AC | 40 | 4800 | 4,4kg |
| AYDAN9 | WW-NW-CW | 220-240V AC | 60 | 7200 | 4,4kg |
| AYDAN9 | WW-NW-CW | 220-240V AC | 83 | 9960 | 4,4kg |
*Power and Lumen values provided are based off of a cold white (CW) LED.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coaitng or anodized aluminium housing
• 4mm tempered glass
• Silicone seal with high protection level
• Aluminium injection molding covers
• Stainless fitting and clips
• Electrostatic painted aluminium injection assembly foot (adjustable for vertical-horizantal-angled moounting)
• 6kV/10kV lighting protective circuit
• NEMA socket Infrastructure
• Light distribution options suitable for all road conditions
• Power and angled options for all pole types
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
ME2 PRO. 90×150
ME3. 90×120
XW. WITHOUT LENS
Mounting
MK42 Ø42
MK60 Ø60
Housing Color Options
RAL9005
RAL9007
RAL9016

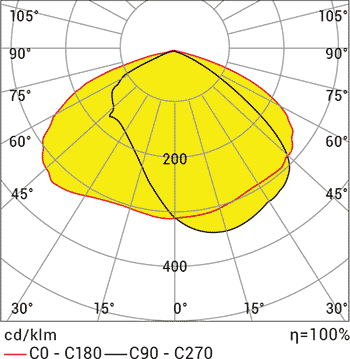

Product Diagrams
Technical Draw
Documents
Projects
