AY380 TECO
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Code | Light Color | INPUT VOLTAGE | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| AY380-TECO | WW-NW-CW | 220-240V AC | 60 | 7.800 | 3,5 |
| AY380-TECO | WW-NW-CW | 220-240V AC | 80 | 10.400 | 3,5 |
| AY380-TECO | WW-NW-CW | 220-240V AC | 100 | 13.000 | 3,6 |
*Power and Lumen values provided are based off of a cold white (CW) LED
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic painted aluminum injection body
• High efficiency group lens
• Optional stainless steel mounting clip
• Optional stainless Busbar mounting bracket
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
Mounting
M01. CABLE TRAYSURFACE MOUNTING
M02. PENDANT MOUNTING
M03. BUSBAR HANGER
Connection Options
01 CABLE
02: CABLE + IP67 SOCKET
Housing Color Options
RAL9005
RAL9007

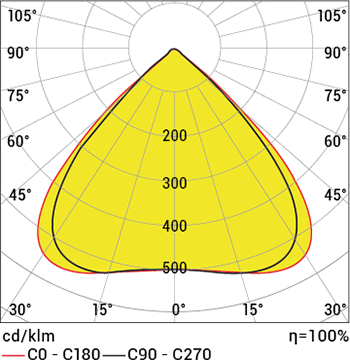

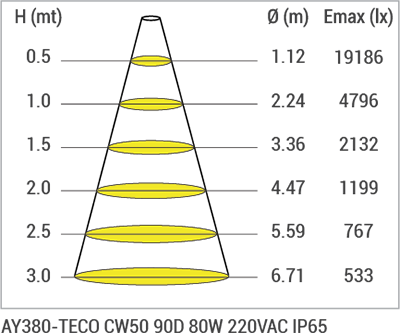

Product Diagrams
Technical Draw
Documents
